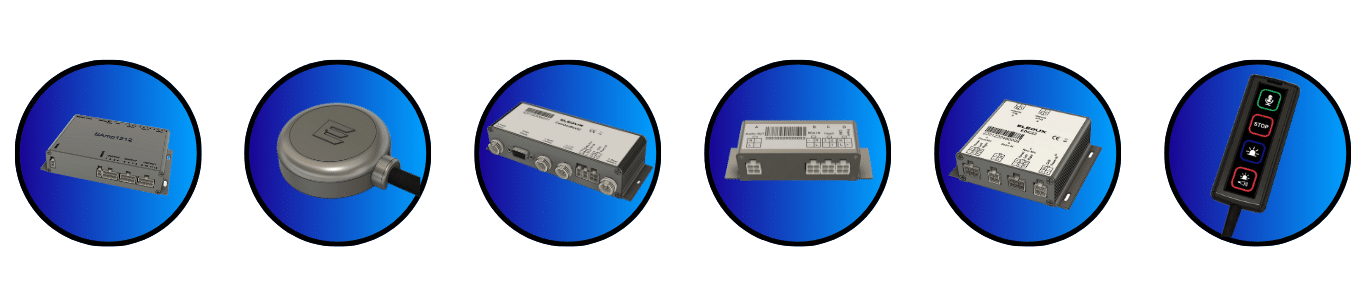

Sound and video devices







Eledux offers functional and intelligent pre-programmed audio and video solutions for special vehicles. Our range includes various microphones, amplifiers, and control units. Eledux’s user-friendly audio and video devices are integrated into the eBus system.

EDIC22

Intercom

The EDIC22 is a two-way internal communication system for vehicles, allowing communication between the front and rear compartments.
Connections: Connects to the radio speaker output, two microphones, and front and rear speakers.
Control: Operated via Eledux touch screen.
Operating Voltage: 8-30VDC
Dimensions: 83 x 83 x 28 mm

EAMP1212S

Siren amplifier

The EAMP1212S is an intelligent CAN bus siren amplifier that can be connected to one or two speakers with a maximum power of 100W each.
Features: Includes programmable inputs and outputs for alarm lights and work lights.
Siren Sounds: Multiple options including Wail, Yelp, Hi-Lo, and Airhorn.
Operating Voltage: 8-30VDC
Dimensions: 140 x 103 x 32 mm

EAMP35

Audio amplifier

The EAMP35 is a 2 x 35W audio amplifier that can be controlled via the CAN bus or with a potentiometer.
Features: Can be used to adjust the volume and attenuation of rear compartment speakers in a vehicle.
Operating Voltage: 8-18VDC
Dimensions: 82 x 32 x 28 mm

EMic32

Digital microphone interface

The EMic32 is a CAN bus digital microphone interface equipped with a push-to-talk button and three customizable function buttons.
Includes sensitivity adjustment, pre-recorded voice messages, and the ability to record custom voice messages (the latter requires a touch display).
The alternative model EMic31 is a similar microphone without digital features.
Operating Voltage: 8-30VDC
Dimensions: 129 x 50 x 17 mm

EMIC11

Lapel microphone

The EMIC11 is an analog microphone designed for connection to an intercom or amplifier, suitable for use as a microphone in an ambulance’s patient area for communication between the driver and caregiver.
Operating Voltage: 8-30VDC
Diameter: 28 mm
Height: 10 mm

ECAMCONBOX42

Camera connector

The ECamConBox42 is an analog camera interface for the ED70Lx display.
Allows connection of up to four analog cameras.
Through the CamConBox, microphones from the cameras can also be connected to the Intercom (EDIC22) unit.

ECAMCONBOX11

Camera-adapter

The CamConBox11 is an adapter between the GX12 connector of a camera and the VGA connector of a Linux display (ED70Lx).
Function: Allows connection of one analog camera to the ED70Lx display.
